Solenoid Valves



Our BSP Brass solenoid valves 2/2 way normally closed pressure 0.1 to 10 Bar (15 watt coil) or 0.1 to 16 Bar (18.5 watt) suitable for many applications including fuel systems.

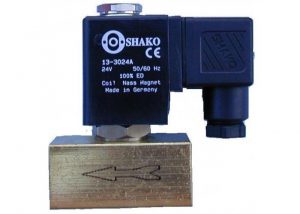

Nass Magnet system 13/30 100% duty rated Class H coils, PU220AR-03 has an 8.0mm orifice, seals NBR, FKM or EPDM, and includes DIN43650A connector. Other options include ATEX coils for Hazardous Area Applications or NPT thread. Available voltages 12vDC, 24vDC, 48vDC or 12vAC, 24vAC, 48vAC, 110vAC, 230vAC or 380vAC.

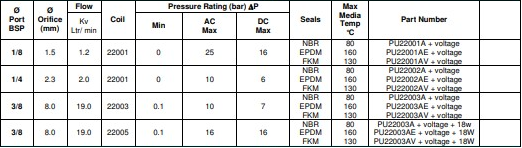

Pressure Data

Electrical Data

Options

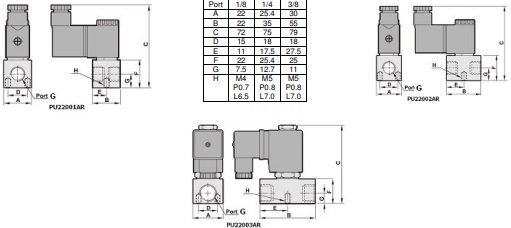

Overall Dimensions





Pressure Data

Electrical Data

Options

Overall Dimensions

Data Sheet: Please click on the pdf link below to open up the datasheet

Please call us on 01903 714226 or email us at contact@metcraft.co.uk to discuss your requirements.
